shape & space : Sin & Cosine Rules




the Sine Rule

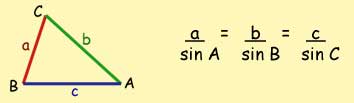

The Sine Rule



sine rule



    1. Use either the right, or left hand equation.
    2. You are given 3 quantities and required to work out the 4 th.



Manipulating the ratio - Take two ratios, cross multiply and rearrange to put the required quantity as the subject of the equation.



      sine rule derivatives



Example #1

sine rule prob#1



sine rule prob#1



Example #2

sine rule probs #2



sine rule prob #2



Example #3

sin rule probs #3



sine rule prob#3



back to top

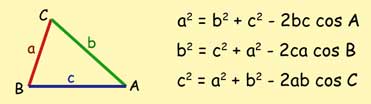

The Cosine Rule



cosine rule



There are two problem types:

  1. You are given 2 sides + an included angle and required to work out the remaining side
  2. You are given all the sides and required to work out the angle.



Example #1

cosine rule prob #1



cosine rule prob #1



Example #2

cosine rule prob#3



cosine rule prob #2



back to top
